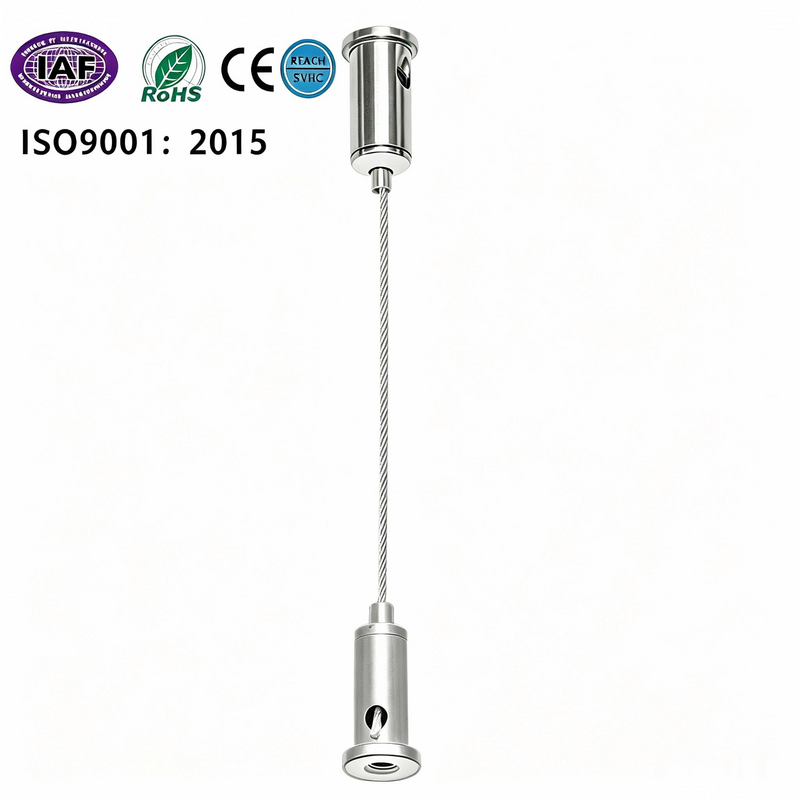

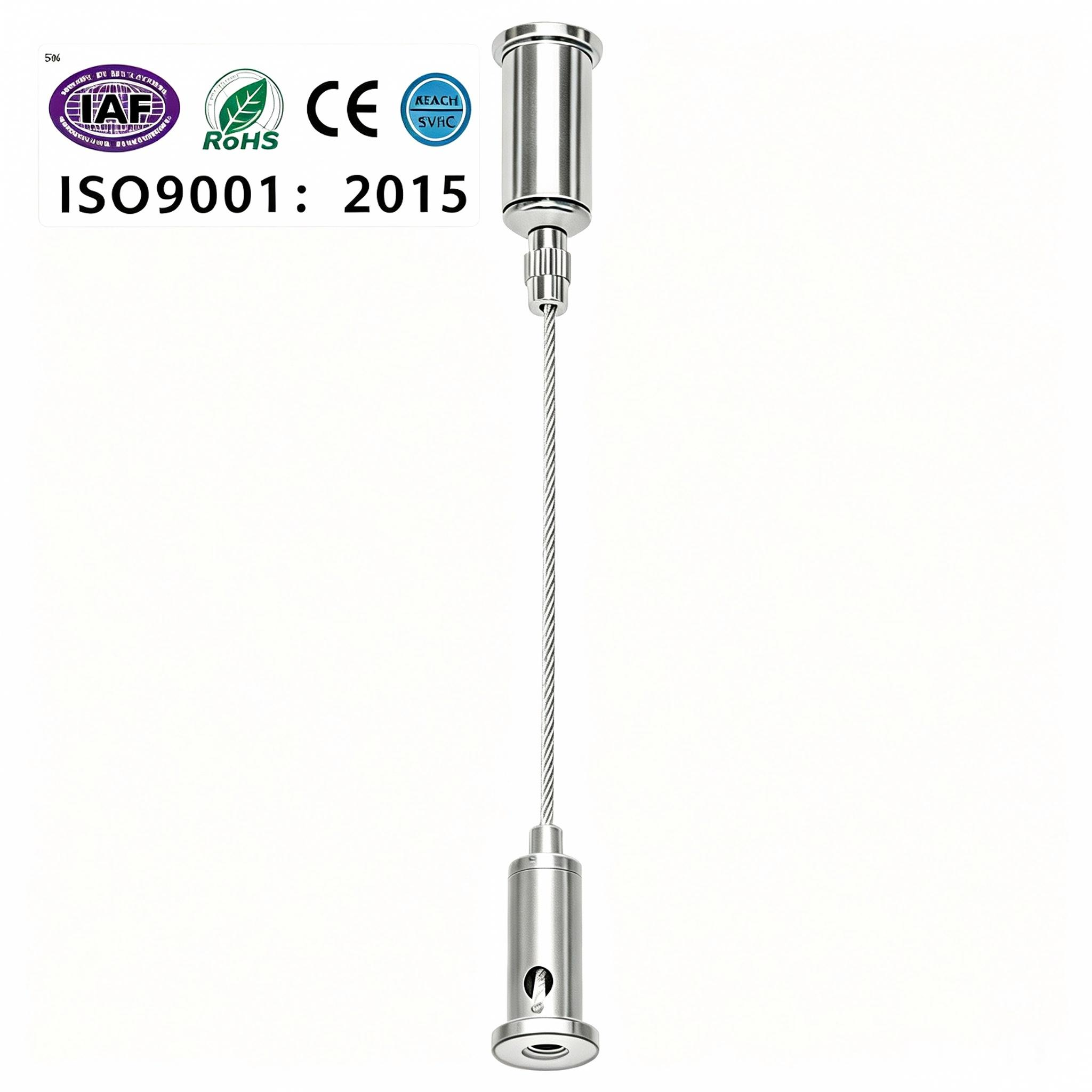

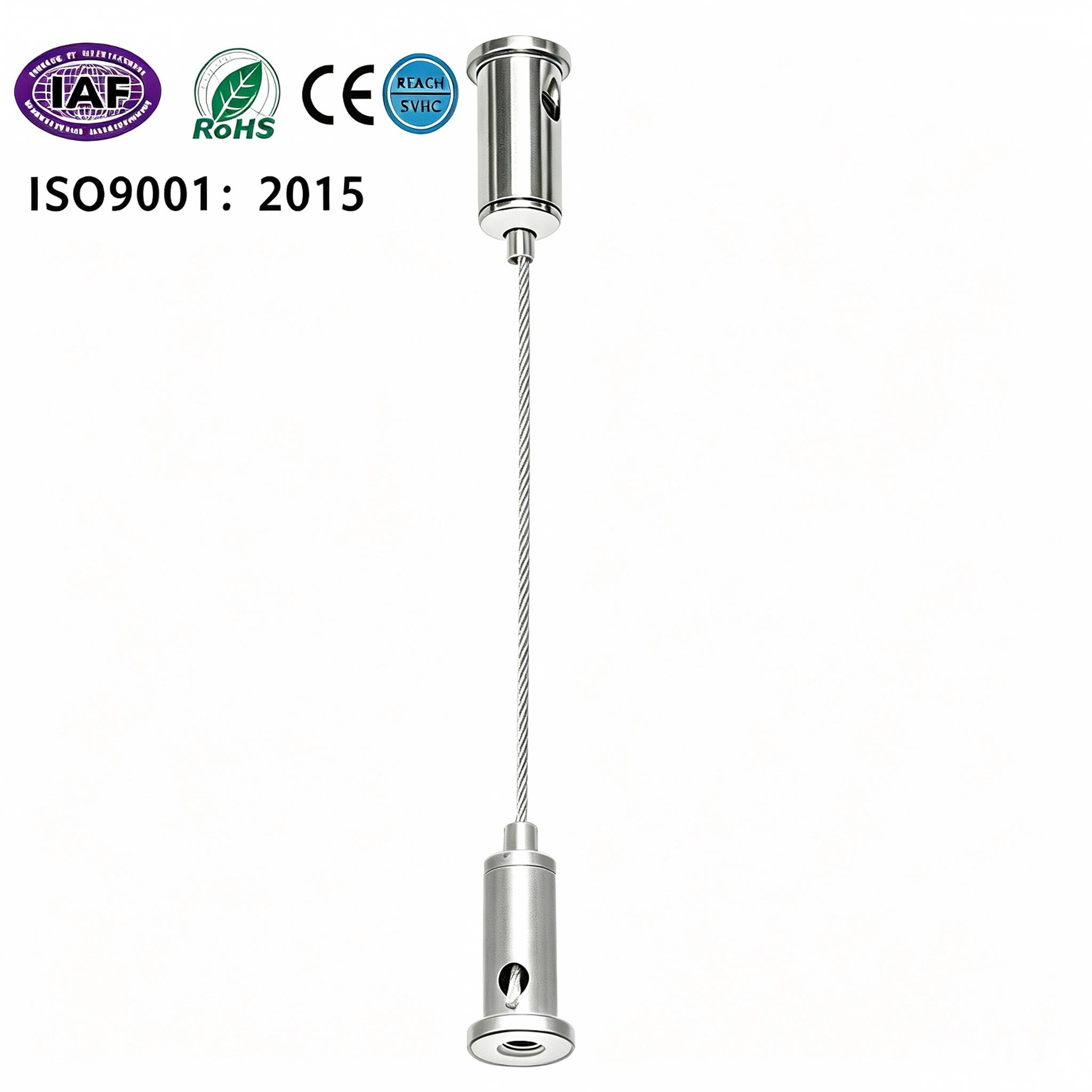

Stepped-Barrel Cable Gripper with 180-Degree Swivel Joint and Solid Brass Construction for LED Linear Light Suspension Kit

Swivel internal‑thread cable gripper with lock nut, with stepped‑barrel structure. Wire rope enters from top and exits from bottom. Rotate the nut and press the top part to adjust rope extension length. Lower swivel joint supports 180‑degree rotation, built‑in M4/M5/M6 female thread. Solid brass construction. Surface finishes: nickel‑plated, chrome‑plated, black, white. Compatible with 0.8‑2.0 mm diameter steel wire rope for light and sign suspension.
Main Application

• Match with external‑thread fasteners, mount onto panel lights, linear lights and LED sign housings to complete suspension and adjust hanging height.
• Compensate offset ceiling anchor points and uneven ceiling surface with 180° swivel function, keep wire rope vertically loaded without forced twisting.
• Ideal for office buildings, supermarkets, exhibition halls and chain‑store lighting projects, also suitable for illuminated signs, for bulk project orders and spare‑part retail.

• Stepped‑barrel design distributes clamping stress, prevent housing deformation and cracking for reliable long‑term load‑bearing.
• 180‑degree swivel joint compensates installation misalignment, lowers on‑site assembly difficulty and saves installation time.
• Auxiliary lock nut strengthens spring‑clip pre‑tension, effectively avoid wire‑rope slipping under heavy‑load for higher safety margin.
• Standard M4/M5/M6 female thread, high compatibility with mainstream lighting hardware, save customer custom‑mold cost.
• Solid brass body, clamping insert resists wear after repeated adjustment, good anti‑vibration performance for ceiling mounting.
• Wide compatibility for 0.8‑2.0 mm wire rope, customers can select rope according to actual load requirement.
• Multiple anti‑corrosion surface treatments available, various colors to match different fixture appearance.
