Detail Information

Color:	According To Your Need,nickel White,black ,grey,standard Color,Galvanized	Surface:	Nickel Plated,Zinc Plated,Electric Galvanized,Painted,stainless,Smooth
Packing:	Drum,Carton Case,Wooden Reel,Wooden Case	Material:	Brass, Copper,iron
Standard:	DIN,GB,AISI,ASTM,JIS	Hs Code:	9405990000
Highlight:	180-degree swivel joint Cable Gripper , M4/M5/M6 internal thread Wire Rope Lock , Solid brass construction Swivel Cable Gripper

Product Description

With Spur Gear Wire Rope Lock Swivel Cable Gripper M4/5/6 Internal Thread For Lighting & Sign Suspension

Product Overview

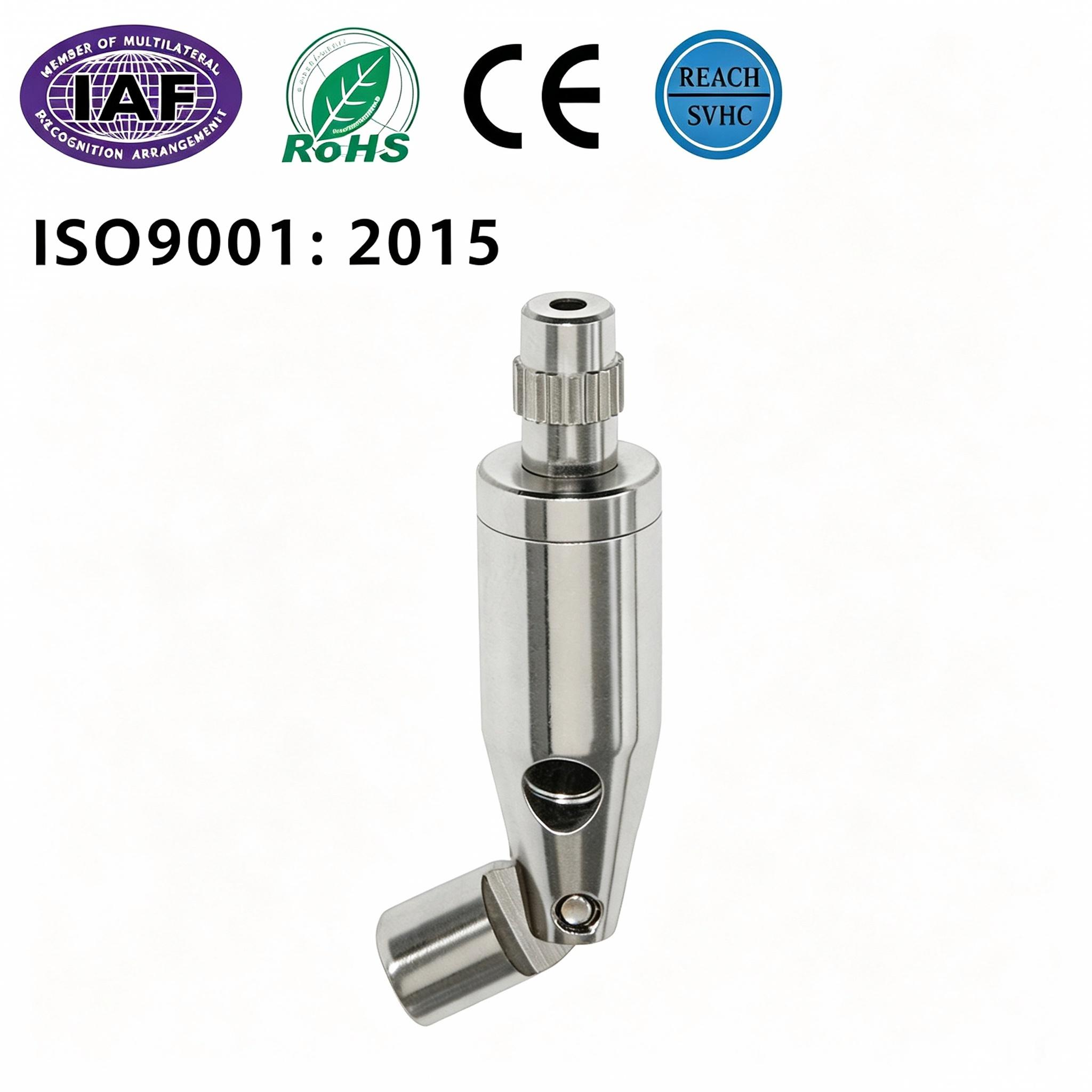

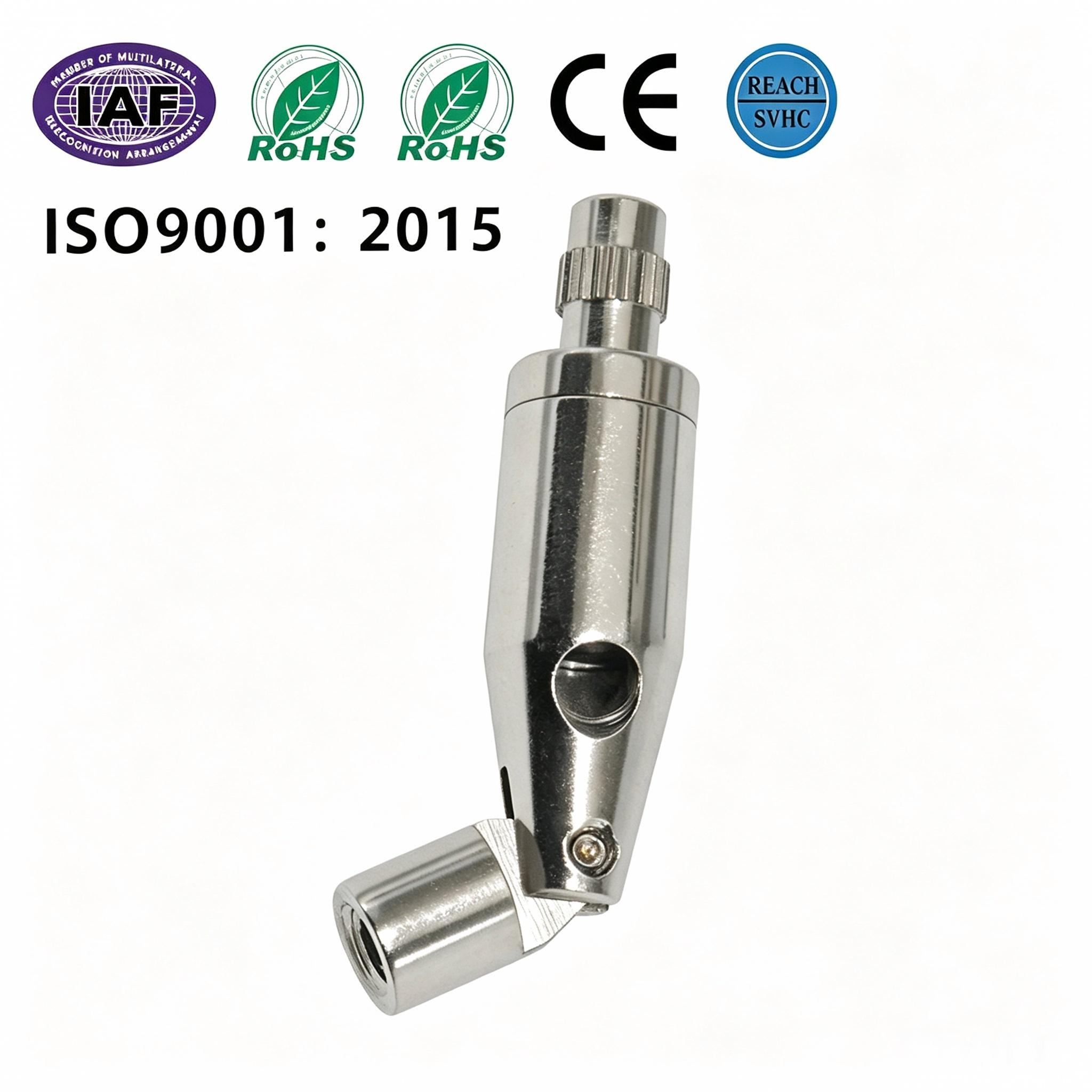

This swivel internal‑thread cable gripper comes with adjusting nut. Steel wire rope feeds from top and exits from bottom. Twist the nut and press upper part of gripper to adjust rope height. The lower swivel joint supports 180‑degree rotation, built‑in M4/M5/M6 internal thread. Made of brass. Surface finish: nickel‑plated, chrome‑plated, black & white electrophoresis. Fits steel wire rope diameter 0.8‑2.0 mm.

Main Application

Matched with external‑thread fasteners to mount on luminaires or signage for suspension and height adjustment.
The 180° swivel design works for offset/angled installation.
Widely applied in commercial lighting, office, supermarket and exhibition projects for panel lights, linear lights and LED signs.

Product Advantages

180‑degree swivel joint, compensates installation misalignment, allows angled mounting.
Dual adjustment: nut pre‑lock + push‑button quick height setting, firm anti‑slip locking.
Standard M4/M5/M6 internal thread, highly compatible with most lighting fasteners for easy replacement & assembly.
Solid brass construction, excellent wear‑resistance, anti‑loosening, not easy to strip thread after repeated adjustments, ideal for heavy‑duty project use.
Wide compatibility for 0.8‑2.0 mm steel wire rope.
Multiple surface treatments for corrosion resistance and color‑matching with fixtures.

Specifications

For Wire Diameter	0.5-2.0mm
For Wire Material	Stainless Steel 316/304/201, Galvanized Iron 77/119 structure, with/without PVC/nylon coated
Color	regular nickel , silver, chrome, white and black , plated or painted ,also can be customized
Material	Brass,copper,iron,carbon steel
Size	9*26mm,φ2.3mm

Company Advantages

One-stop hardware for all lighting — cables, rods, safety wires, die-cast parts
In-house manufacturing — precision, variety, quality finishes
Flexible orders, fast stock dispatch, reliable lead times, custom molds welcome
Tested tough — salt spray, load, RoHS, full documentation
Factory prices, tiered savings — smarter procurement
Global-ready — branded packaging and export docs sorted
Skilled engineers — free samples, custom solutions

Exhibitions
-Guangzhou International Lighting Exhibition (GILE) 2023Guangzhou ...
-Hong Kong International Lighting Fair (Autumn Edition) 2023
-International Trade Show of Lighting Equipment LIGHT 2024 (Warsaw)Targi Świa...
-Light + Building 2024Light + Bu...
-Guangzhou International Lighting Exhibition (GILE) 2025
-Hong Kong International Lighting Fair (Autumn Edition) 2025
-Guangzhou International Lighting Exhibition (GILE) 2025
-Interlight Russia | Smart city & home 2025
-Hong Kong International Lighting Fair (Autumn Edition) 2025
-Light + Building 2026 Q1:Are you a trading company or factory?

180-Degree Swivel Cable Gripper with M4/M5/M6 Internal Thread and Solid Brass Construction for Lighting Suspension

FAQ
A : We are 100% factory,we warmly welcome our customers makes a field visiting at any time.
Q2: IF The Sample Is Free?
A : Free sample available for existing dimension.
Q3: What about the lead time?
A : Sample needs 5~7 days, mass production time needs 1-2 weeks for order confirmation
Q4: Wha test do you do?
A : We do tensile test for our wire rope cable assembly products and do salt fog test for our other light accessories hardwares
such as cable gripper,etc.
Q5: How to proceed an order?
A : Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: I want to know if we do long term business,what benefit do i can get?
A : Yes,We assured our long term customers can get special treat.we have prepared company policy.we will let you know by then.
For more questions or links about our infomation indetails,pls feel free to contact us to get.Thank
you.Double M4 M5 M6 Copper Iron Hardware Rope Hanging Kit With Locking Post For Linear Light Panel Light Billboard Double M4 M5 M6 Copper Iron Hardware Rope Hanging Kit With Locking Post For Linear Light Panel Light Billboard

Tag:

Place of Origin:	Dongguan city , Guangdong Province, China
Certification:	CE/ROHS/REACH
Document:	(S)Meiyan Lighting Catalog.pdf

Minimum Order Quantity:	200
Price:	0.2-0.35
Packaging Details:	302222/352530423535cm carton box ,120100cm pallet
Delivery Time:	10 work days ,depends on the quantity
Payment Terms:	T/T
Supply Ability:	10000 units per week

180-Degree Swivel Cable Gripper with M4/M5/M6 Internal Thread and Solid Brass Construction for Lighting Suspension
