Detail Information

Color:	According To Your Need,nickel White,black ,grey,standard Color,Galvanized	Surface:	Nickel Plated,Zinc Plated,Electric Galvanized,Painted,stainless,Smooth
Packing:	Drum,Carton Case,Wooden Reel,Wooden Case	Material:	Brass, Copper,iron
Standard:	DIN,GB,AISI,ASTM,JIS	Hs Code:	9405990000
Highlight:	3-hole split-cable structure Cable Gripper , Press-to-adjust height Wire Rope Lock , Wide compatibility Hanging Kit

Product Description

180 Degree Rotatable Swivel Wire Rope Hanging Kit For Linear Light Panel Light LED Screen Billboard Hardware

Product Overview

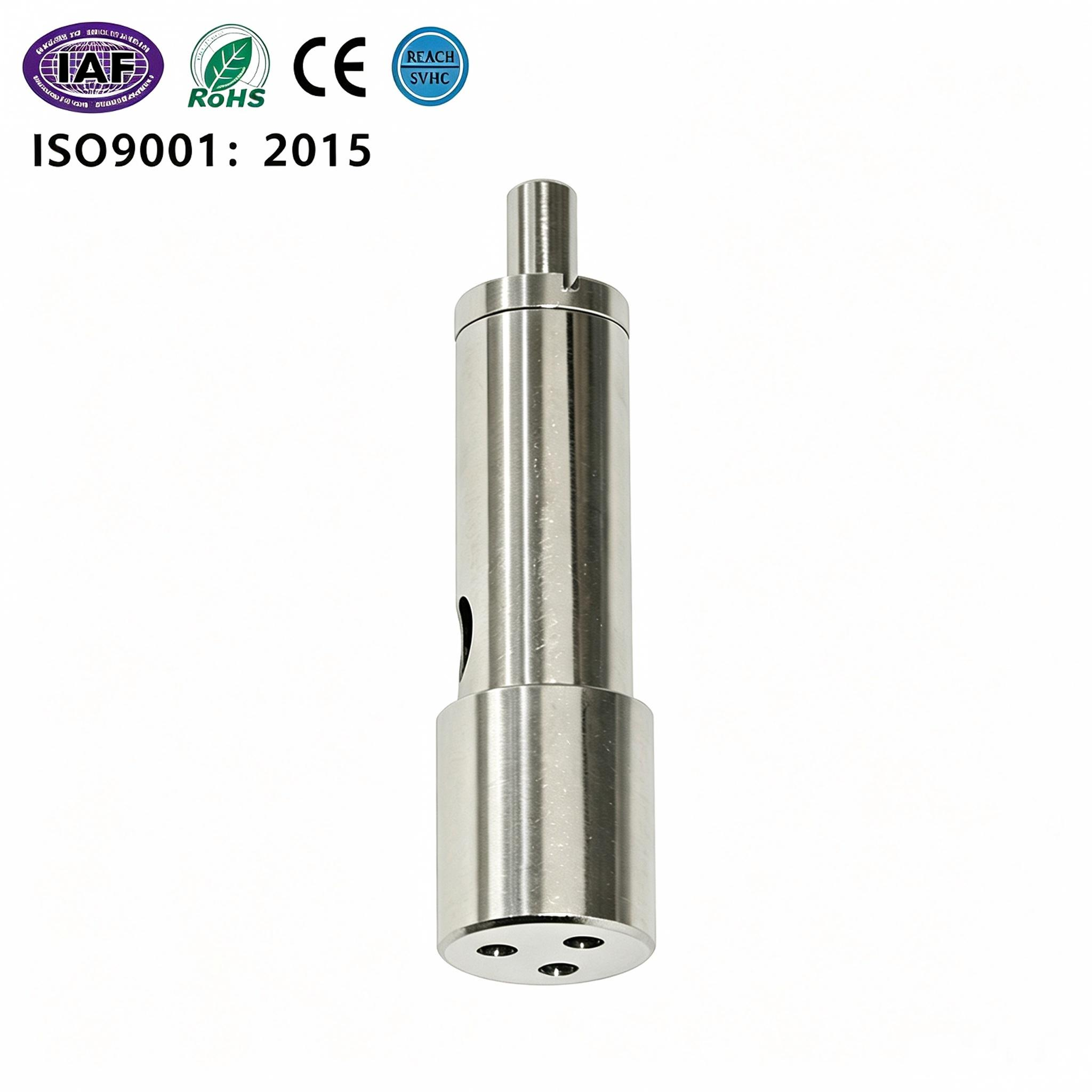

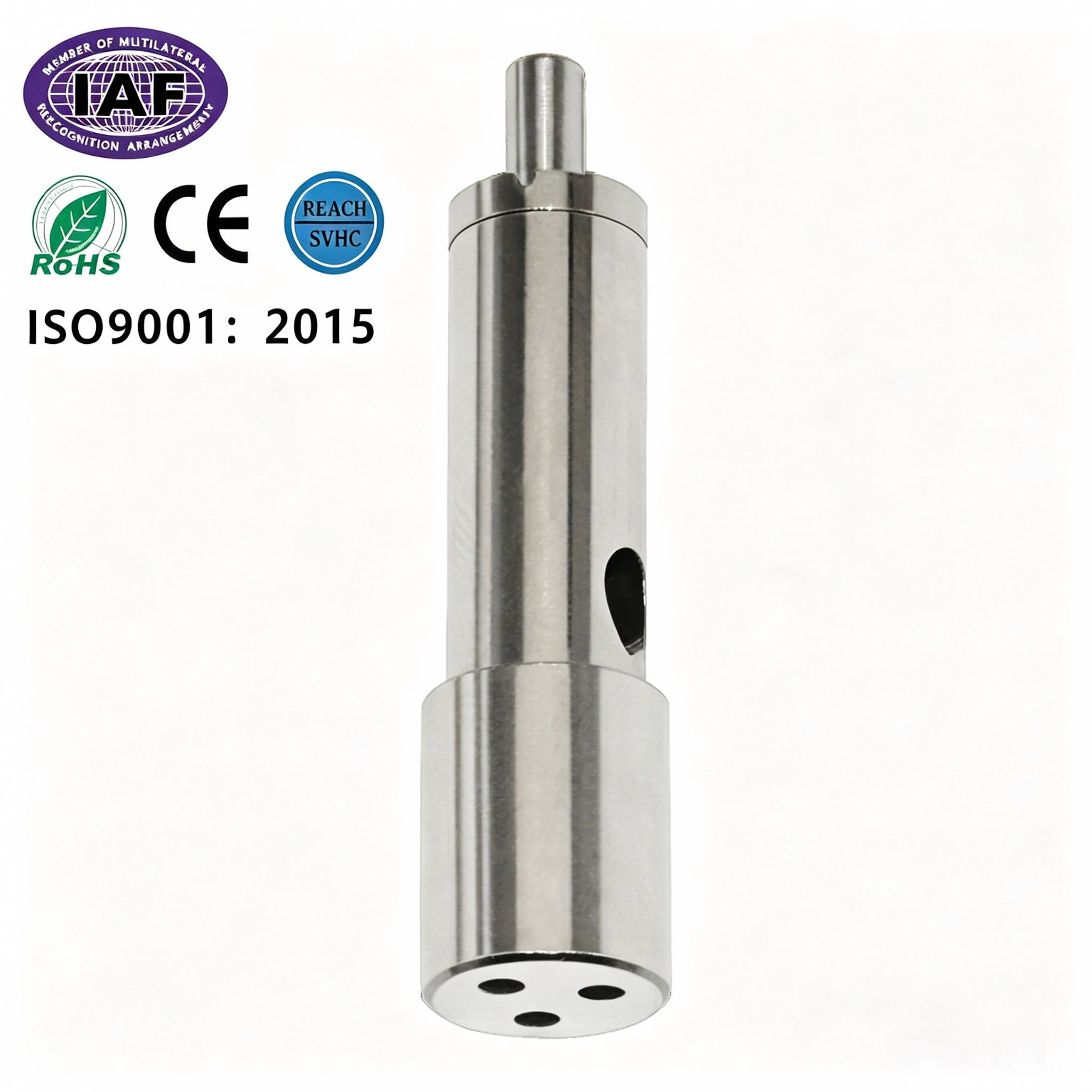

This 3‑hole split‑cable cable lock is special hardware for lighting suspension. Wire rope feeds from top with side outlet, and three wire ropes come out from bottom holes. Press the upper part of lock to adjust wire‑rope length and suspension height.

It is widely used for hanging panel lights, plant grow lights, LED screens and illuminated billboards.

Available in copper and iron. Surface finishes: nickel‑plated, chrome‑plated, black & white plating. Compatible with various wire ropes of different diameters and materials.

Main Application

Suspension mounting for LED panel lights and commercial luminaires
Multi‑point hanging for plant grow lights
Hanging for LED screens, light‑up billboards and signage
Projects in offices, greenhouses, exhibition halls and shopping malls where one‑to‑multi‑point suspension is required

Product Advantages

3‑hole split‑cable structure: One lock outputs three wire ropes. Reduce ceiling drilling holes and simplify installation work.
Press‑to‑adjust height: Quick length adjustment without extra tools for on‑site setup.
Wide compatibility: Fits various wire‑rope diameters and materials.
Two‑material options: Copper or iron body for different load‑bearing, anti‑corrosion and budget requirements.
Multiple plating finishes: Nickel‑plated, chrome‑plated, black & white plating to match lamp appearance.
Compact size, neat layout and save installation space.

Specifications

For Wire Diameter	0.5-2.0mm
For Wire Material	Stainless Steel 316/304/201, Galvanized Iron 77/119 structure, with/without PVC/nylon coated
Color	regular nickel , silver, chrome, white and black , plated or painted ,also can be customized
Material	Brass,copper, iron
Size	φ3,10*41mm

Company Advantages

One-stop hardware for all lighting — cables, rods, safety wires, die-cast parts
In-house manufacturing — precision, variety, quality finishes
Flexible orders, fast stock dispatch, reliable lead times, custom molds welcome
Tested tough — salt spray, load, RoHS, full documentation
Factory prices, tiered savings — smarter procurement
Global-ready — branded packaging and export docs sorted
Skilled engineers — free samples, custom solutions

Exhibitions
-Guangzhou International Lighting Exhibition (GILE) 2023Guangzhou ...
-Hong Kong International Lighting Fair (Autumn Edition) 2023
-International Trade Show of Lighting Equipment LIGHT 2024 (Warsaw)Targi Świa...
-Light + Building 2024Light + Bu...
-Guangzhou International Lighting Exhibition (GILE) 2025
-Hong Kong International Lighting Fair (Autumn Edition) 2025
-Guangzhou International Lighting Exhibition (GILE) 2025
-Interlight Russia | Smart city & home 2025
-Hong Kong International Lighting Fair (Autumn Edition) 2025
-Light + Building 2026<img style="display: block; margin-left: auto; margin-right: auto;" src="//style.mainjorwire.com/photo/mainjorwire/editor/20260908165515_63186.jpg<br> Q1:Are you a trading company or factory?
A : We are 100% factory,we warmly welcome our customers makes a field visiting at any time.
Q2: IF The Sample Is Free?
A : Free sample available for existing dimension.
Q3: What about the lead time?
A : Sample needs 5~7 days, mass production time needs 1-2 weeks for order confirmation
Q4: Wha test do you do?
A : We do tensile test for our wire rope cable assembly products and do salt fog test for our other light accessories hardwares
such as cable gripper,etc.
Q5: How to proceed an order?
A : Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: I want to know if we do long term business,what benefit do i can get?
A : Yes,We assured our long term customers can get special treat.we have prepared company policy.we will let you know by then.
For more questions or links about our infomation indetails,pls feel free to contact us to get.Thank
you.Double M4 M5 M6 Copper Iron Hardware Rope Hanging Kit With Locking Post For Linear Light Panel Light Billboard Double M4 M5 M6 Copper Iron Hardware Rope Hanging Kit With Locking Post For Linear Light Panel Light Billboard
