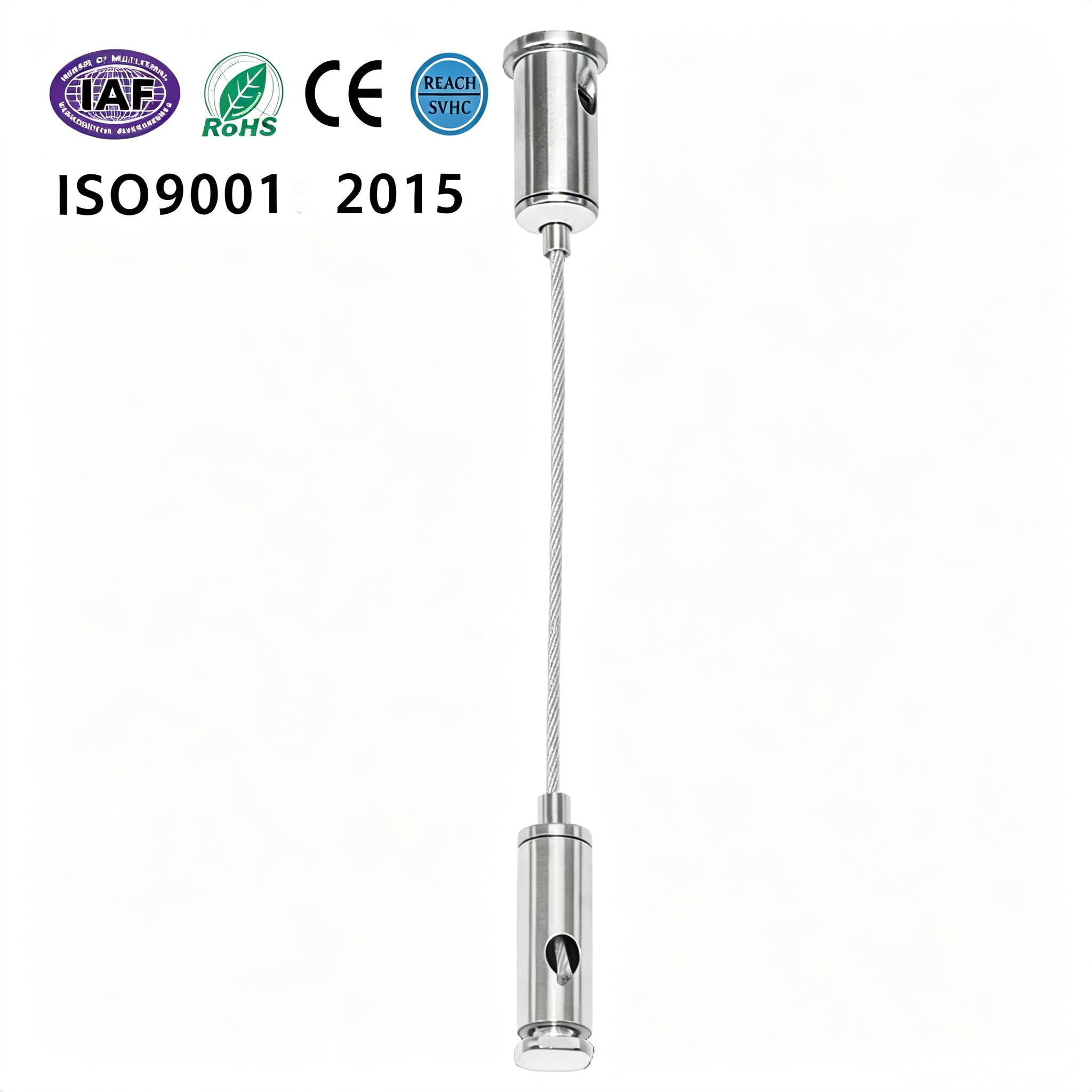

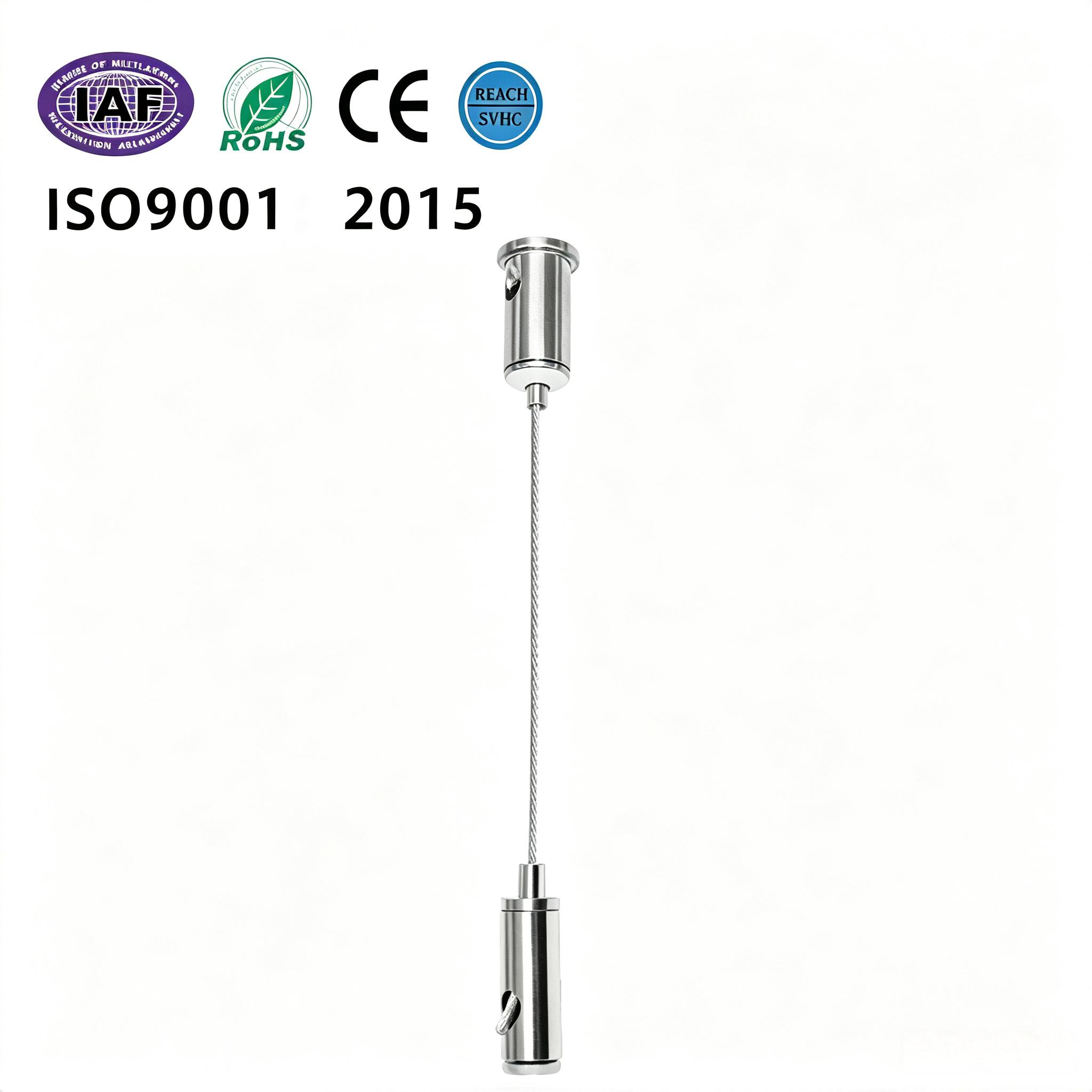

Dual Side Linear Lights Adjustable Suspension Kit with Wide Wire Rope

This suspension cable assembly is a special hardware fitting for luminaire suspension. It supports bidirectional adjustment of wire‑rope length to change fixture height. Compatible with wire rope diameters of 1.0 mm, 1.2 mm, 1.5 mm and 2.0 mm. The lower cable gripper comes in M4, M5, M6 sizes with matching screws, which can be fastened into luminaire profile grooves. Press either the top M10 cable gripper or bottom gripper to release and adjust the wire rope. Copper and iron material options are available for different anti‑corrosion and budget requirements.

1. Ceiling suspension for linear lights, panel lights, light boxes and commercial signage;
2. Secure mounting inside luminaire profile grooves;
3. On‑site height adjustment and level calibration for suspended fixtures.

1. Dual‑side adjustability: Both top M10 and bottom gripper can be pressed for release, allowing upward and downward height adjustment.
2. Wide wire‑rope compatibility: Fits 1.0‑2.0 mm wire ropes, covering light‑duty to heavy‑duty lighting loads.
3. Multiple thread sizes: M4 / M5 / M6 threads with matched screws, widely compatible with most luminaire profile grooves for firm installation.
4. Two‑material selection: Copper version delivers excellent locking performance and wear resistance; iron version provides cost‑effective solution.
5. Tool‑free on‑site operation: Press‑to‑release mechanism enables fast height adjustment without extra tools.
6. Reliable fixation: Screws fasten tightly into profile grooves to prevent loosening under load.
