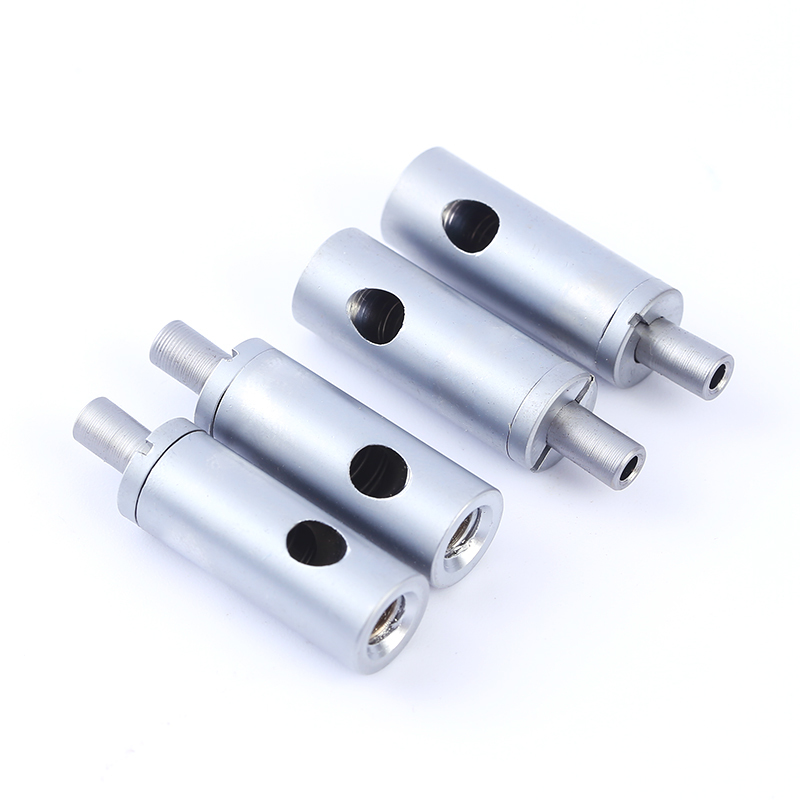

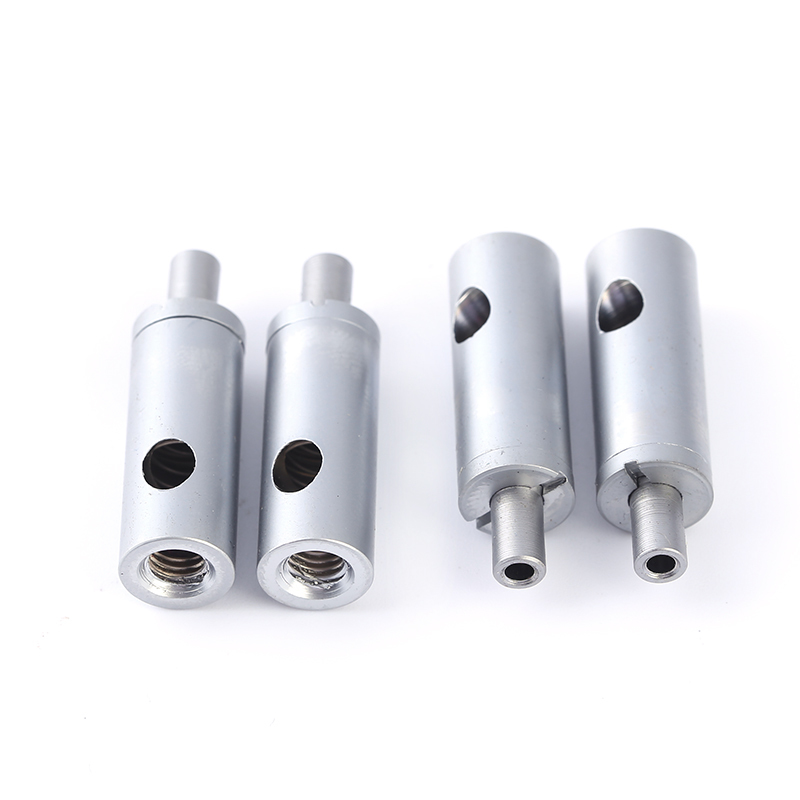

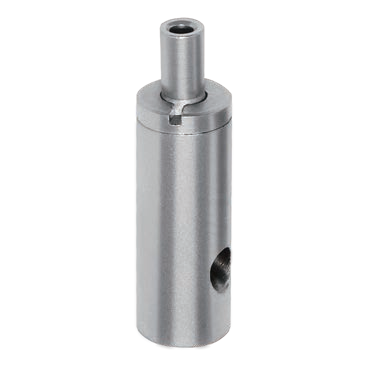

Brass M5 Cable Gripper for 1-1.5mm Wire 90kg Load Nickel Plated Pearl Chrome

Cable Gripper with Female Thread for Lighting System,hanging and Display

Key Features

• Durable brass construction for long-lasting performance

• Multiple surface treatment options for different environmental needs

• High breaking load capacity of 90kg

• Precision engineered for aircraft cables from ∅1 to ∅1.5 mm

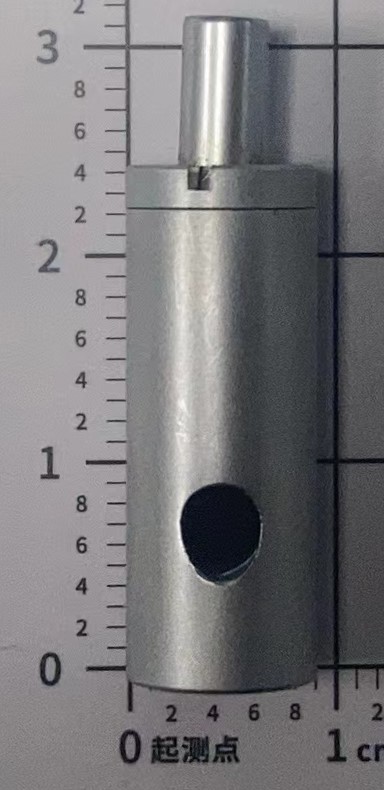

• Compact size (∅ 9*24mm) for space-constrained applications

Structure of Universal Aircraft Cable Gripper:

What’s the structure of the cable grippers?

The internal structure of the cable grippers consists of bearing balls, springs, pressure plates, and plungers. The outer glider housing is usually made of copper material.

How do the cable grippers work and grip the wire rope?

Depress the plunger and insert the cable through the plunger to pass the cable gripper; then release the plunger to lock up the cable at the present position you need.

When the plunger has been pressed, the spring and pressure plate go down simultaneously to release the ball bearings. The ball bearings will be in a loose condition which makes the cable pass the gripper smoothly.

When releasing the Plunger, the pressure plate and spring go up to tighten the Ball bearings, this will lock the cable in this present position.

Application:


* Acoustics, Display, Exhibition, Room divider, Decoration…Everything that hangs from the ceiling or the wall should use our Suspension Systems.
* Cable gripper that allows adjusting the height of a fixture without utilizing tools
* Compact-designed grippers allow swift installation and instant adjustment.
* Attachments are used to fix the cables to ceilings, walls, or floors.
* Stainless steel and zinc-plated cables are available in various dimensions and lengths.

Materials & Finishes:

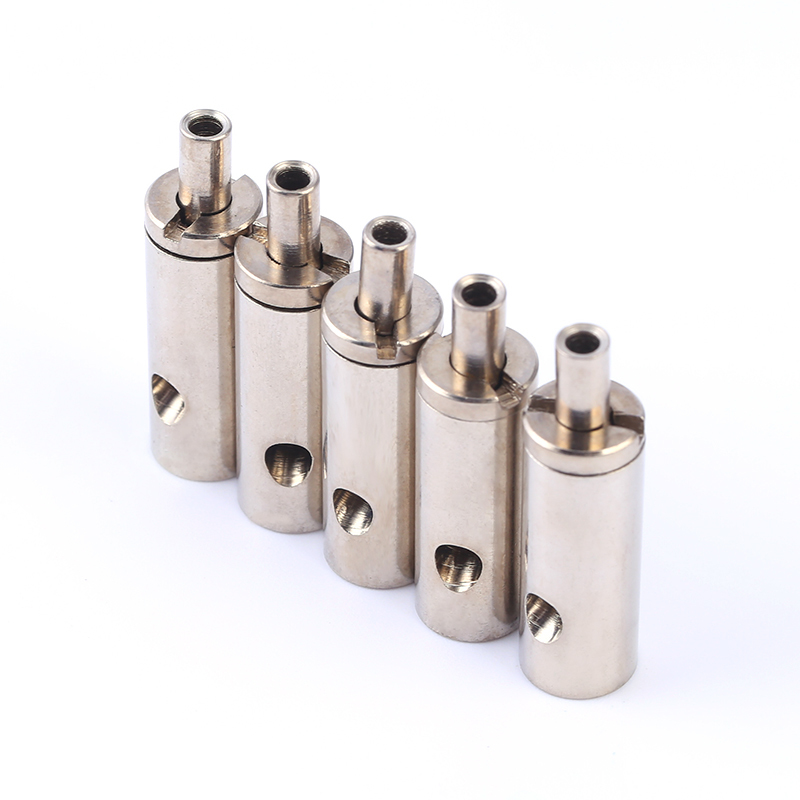

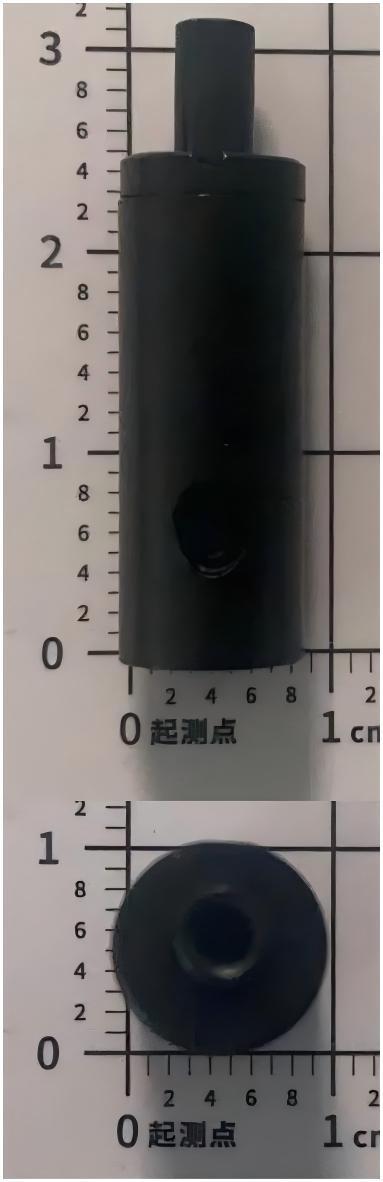

Cable Grippers are made of nickel&Chrome-plated brass with a few exceptions. Internal mechanisms are comprised of brass and stainless steel. Grippers are also available in a black zinc finish,satin-chrome. Other finishes are available upon request. Some of the other items are made of anodized aluminum and come in several colors.

How It Works

Aircraft Cable Grippers are sophisticated in design but simple to use:

• Insert the cable into the plunger and slide the gripper to the desired position.

• Where it stops it locks. To re-adjust, simply depress the plunger with your fingertip and move the gripper to a new position. Release the plunger to lock.

• The 3--ball gripping mechanism is spring-loaded and allows the gripper to move freely up the cable. It cannot move down unless the plunger is depressed.

• While there is no weight at all on the gripper, the plunger cannot be depressed.

• An optional “safety nut” or “safety cap” can be added to completely lock the mechanism in both directions. The greater the weight, the stronger it grips.

F&Q

Q1:Are you a trading company or factory?
A : We are 100% factory,we warmly welcome our customers makes a field visiting at any time.

Q2: IF The Sample Is Free?
A : Free sample available for existing dimension.

Q3: What about the lead time?
A : Sample needs 5~7 days, mass production time needs 1-2 weeks for order confirmation

Q4: Wha test do you do?
A : We do tensile test for our wire rope cable assembly products and do salt fog test for our other light accessories hardwares
such as cable gripper,etc.

Q5: How to proceed an order?
A : Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6: I want to know if we do long term business,what benefit do i can get?
A : Yes,We assured our long term customers can get special treat.we have prepared company policy.we will let you know by then.

For more questions or links about our infomation indetails,pls feel free to contact us to get.Thank
you.
